Selection of Stone Crushing Equipment for Quarries and Configuration of Common Sand and Gravel Produ

Stone crushers, also known as crushers, are essential crushing machinery in stone quarries. Generally, there are three types to choose from: coarse crushers, medium crushers, and fine crushers. Users can select the appropriate type based on the size, hardness, and desired finished product specifications of the raw stone. The following introduces the configuration scheme and price of a stone crusher production line for a quarry, which we hope will be helpful to you.

The following points should be considered when selecting equipment for a reasonable sand and gravel production line:

1. Raw material hardness: Different raw materials require different crushers. For hard stones such as pebbles, granite, and quartz, compression crushers, such as cone crushers and jaw crushers, are more wear-resistant. Similarly, if your raw material has low hardness, such as limestone, gypsum, coal gangue, or dolomite, you can choose impact crushers, hammer crushers, or vertical shaft impact crushers, which can effectively save costs. If inappropriate equipment is selected, such as using an impact crusher to process high-hardness materials, although the finished product particle shape will be improved, some parts of the equipment will wear out severely, increasing maintenance costs.

2. Production capacity: The configuration of the entire crushing production line must be determined based on the customer's actual output. For example, a 50-ton/hour solution differs greatly from a 500-ton/hour solution. Furthermore, the output range of each type of equipment is not small; for example, jaw crushers range from 1 to 1000 t/h. The specific selection depends on your actual output.

3. Price Budget: Different types of stone crushers vary significantly in price due to differences in working principles and manufacturing processes. After all, you get what you pay for. However, in practice, it's not always necessary to choose the most expensive; some economical options can also meet processing needs.

4. Finished Product: For products requiring high quality, a more refined production line is needed; for products with less stringent quality requirements, a simpler production line is sufficient. This has a significant impact on overall cost.

5. Site Considerations: If the site is challenging, users can choose a more advanced mobile crushing production line. These allow for easy relocation, direct installation on the production site, and intelligent control, enabling operation from a control room.

Common stone production line configurations are as follows:

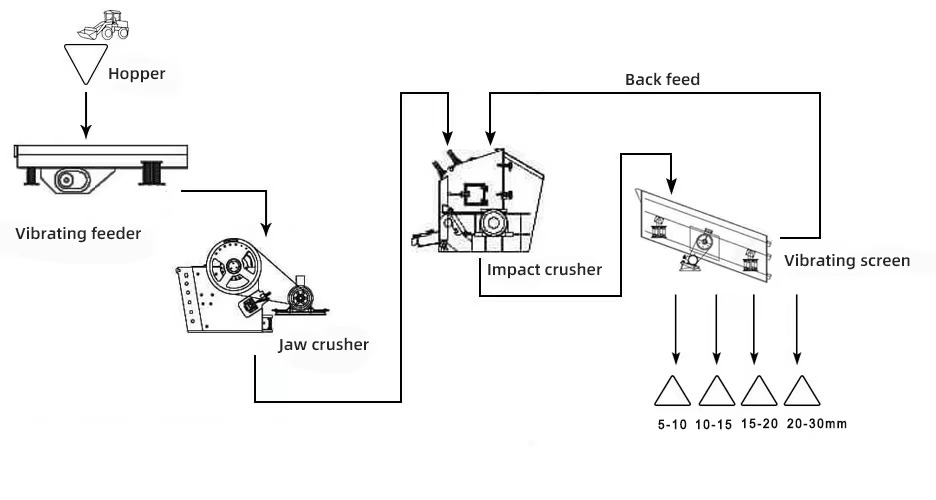

Option 1: 100 tons/hour stone production line

Main equipment: Vibrating feeder, jaw crusher, impact crusher, conveyor, vibrating screen

Suitable for crushing brittle stones, such as limestone, bluestone, and weathered stone. A stationary production line.

Option 2: 200 tons/hour sand and gravel production line

Main equipment: Vibrating feeder, jaw crusher, cone crusher, conveyor, vibrating screen

Suitable for crushing harder materials, such as pebbles, basalt, and granite. A stationary production line. Finished product size is approximately 10-20mm.

Option 3: 300 tons/hour stone quarry production line

Main equipment: Vibrating feeder, heavy hammer crusher, hammer crusher, vibrating screen, several conveyors

A single hammer crusher can crush materials without coarse crushing. Suitable for softer materials, such as bluestone.

Option 4: 400-ton-per-hour quarry production line

Main machinery and equipment: Vibrating feeder, jaw crusher, impact crusher (two units), sand making machine, vibrating screen (two units), several conveyors

A stationary production line equipped with two impact crushers, offering higher output and suitable for softer materials, producing finished products with a size of 0-5mm.

How much does a complete stone crushing production line for a quarry cost?

The total investment for a sand and gravel plant production line varies from hundreds of thousands to millions of US dollars depending on its scale. Based on the above information, the price is roughly between one or two hundred thousand and several million US dollars. The larger the output and the more sophisticated the configuration, the higher the price.
