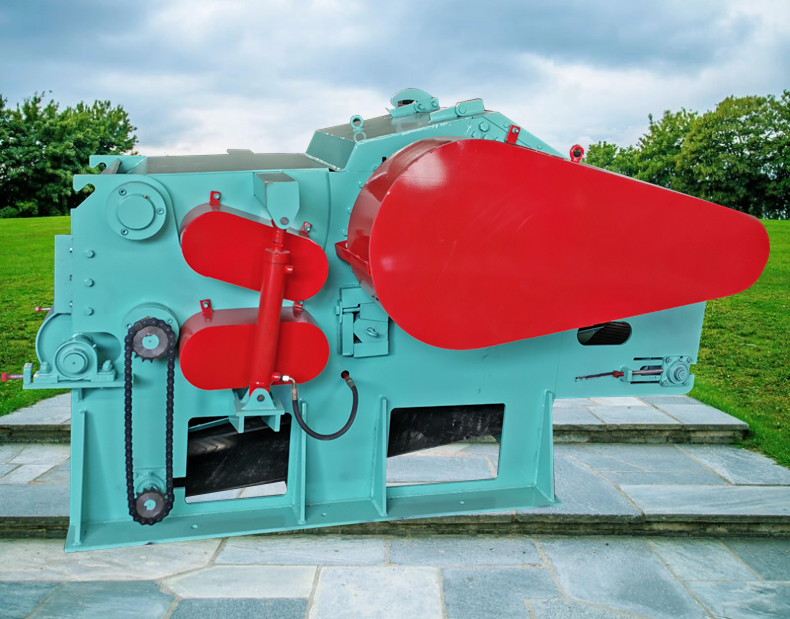

Wood drum crusher

Drum type wood slicer is a type of wood slicer that is used to produce wood chips. This wood chip machine is applied in industrial and production facilities such as particle board factories, medium and high-density fiberboard factories, straw factories, biomass power plants, and wood chip factories as pre equipment in the material preparation section.

The drum type chip cutting machine is not too complicated. The machine adopts a steel plate structure welded together. The entire machine is mainly composed of the body, knife roller, upper and lower feeding rollers, conveyor belt, and hydraulic system (excluding the motor). The high-strength welded plate is the supporting cornerstone of the machine. The drum cutting machine is equipped with two, three, or four flying knives on the blade roller, which are fixed to the roller with specially manufactured flying knife bolts and pressure blocks. According to the different thicknesses of the cutting materials, the upper feeding roller assembly can float up and down within a certain range with the help of a hydraulic system. The qualified cut pieces fall through the sieve holes and are discharged from the bottom. The larger pieces will be cut inside the machine. Drum type chip cutting machine hydraulic system: supplied by an oil pump to the oil cylinder, the cover can be activated for easy blade replacement; During maintenance, the upper feeding roller assembly can be lifted to facilitate the adjustment of the gap between the flying blade and the bottom blade, as well as the disassembly and assembly of the comb plate.

1. Large drum chippers and wood slicers have high output, low energy consumption, high quality wood chips, and high cost-effectiveness.

2. The drum type chip cutting machine has a compact structure, reasonable layout, easy installation, convenient operation and maintenance, and high production capacity; When cutting logs, the quality of the wood chips is high, and the length of the wood chips can be freely adjusted within the specified range by the machinery and equipment.

3. The production capacity of drum chippers allows users to choose their own model according to their needs. The wood pulverizer has a beautiful appearance, is sturdy and durable, and has a high output. Its efficiency has increased by more than 50% compared to traditional wood powder machines.1. Large drum chippers and wood slicers have high output, low energy consumption, high quality wood chips, and high cost-effectiveness.

2. The drum type chip cutting machine has a compact structure, reasonable layout, easy installation, convenient operation and maintenance, and high production capacity; When cutting logs, the quality of the wood chips is high, and the length of the wood chips can be freely adjusted within the specified range by the machinery and equipment.

3. The production capacity of drum chippers allows users to choose their own model according to their needs. The wood pulverizer has a beautiful appearance, is sturdy and durable, and has a high output. Its efficiency has increased by more than 50% compared to traditional wood powder machines.

The drum wood chipper can cut logs, small diameter trees, wood cutting residues (branches, twigs, etc.), wood processing residues (Flat noodles, veneer, round wood core, waste veneer, etc.

The drum-type wood chipper can cut raw materials such as logs, small-diameter wood, wood harvesting residues (branches, twigs, etc.), wood processing residues (slats, veneer edges, log cores, waste veneer, etc.), bamboo, cotton stalks, reeds, rice straw, wheat straw and other non-wood fiber stems into flakes of certain specifications. These flakes serve as basic raw materials for manufacturing particleboard, fiberboard, medium and high density fiberboard, non-wood based panel and pulp & paper.
