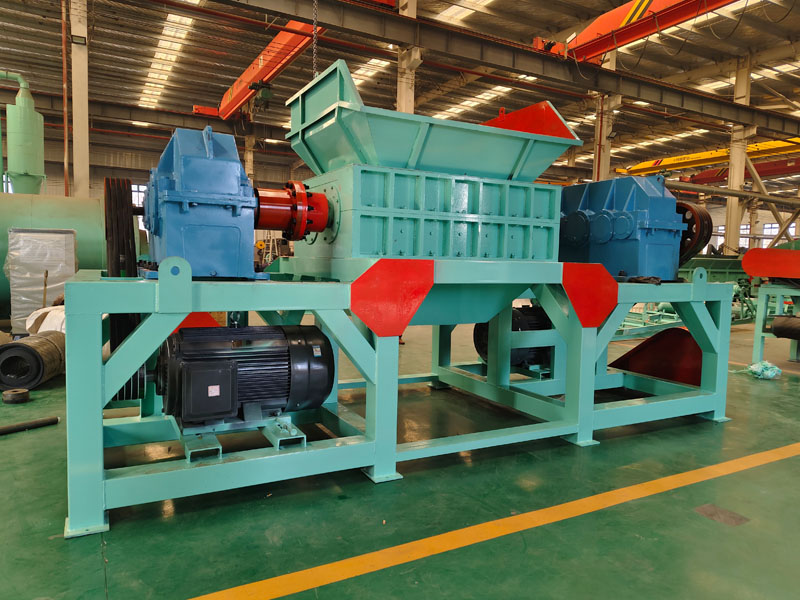

Wood shredder

Product Introduction

The shredder is equipped with a microcomputer (PC) automatic control system, which includes functions such as start, stop, reverse, and overload automatic reverse control. It has the characteristics of low speed, high torque, and low noise. The bearing seat adopts a split type, which is easy to disassemble and change knives, suitable for shredding oversized, thick and difficult to crush materials. The shredder cutting tools are made of high-density alloy tool steel and high wear-resistant mold steel, which are durable and long-lasting; The reducer adopts the hard tooth surface national standard series, and the motor adopts Nanjing Kongte, both of which are well-known domestic brands with a one-year warranty for the entire machine.

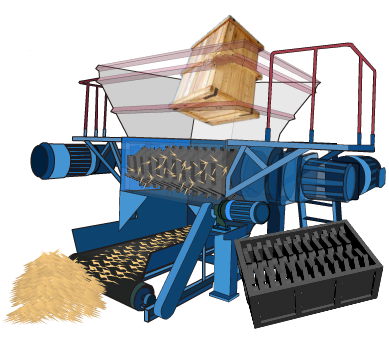

The shredder adopts a reduction motor directly connected to the worm gear, which is directly installed on the active shaft of the crusher. It is variable speed to the transmission shaft through large and small gears, so that the spiral tooth disc on the main transmission shaft forms relative motion. The spiral toothed cutterheads on the main drive shaft are arranged in a staggered manner, causing the material to be crushed by squeezing, tearing, and shearing at the same time after entering.

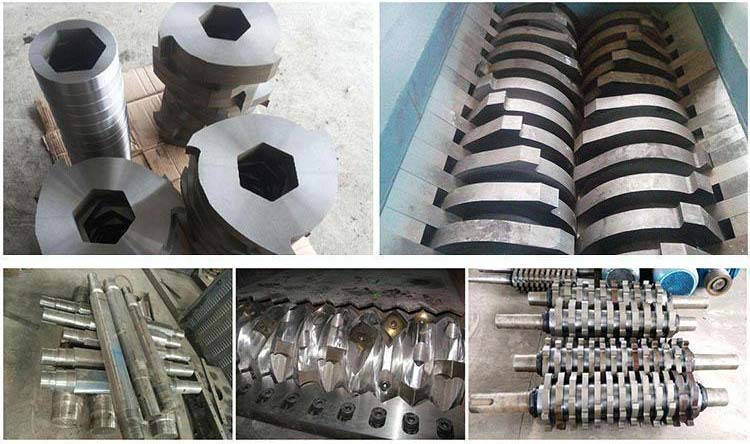

1: Thick and powerful cutting tools, with high crushing power. The cutting tools are made of alloy tool steel and wear-resistant mold steel casting, which are sturdy and have a long service life.

2: The frame plate is thick and can withstand high torque, making it very sturdy.

3: Set up start, stop, reverse, and overload automatic reverse control functions.

4: The equipment has the characteristics of low speed, high torque, low noise, and dust that can meet environmental standards.

5: Easy to adjust, low maintenance cost, economical and durable.

6: The thickness of the cutting tool and the number of claws can be changed according to different materials.

The wood shredder can shred: wood, lumber, templates, door panels, tree roots, old furniture, old tables, old chairs, old wooden boxes, old door and window materials, tree branches and other wooden materials. After crushing, the wood material particles are fine and can be used as raw materials for building materials such as wooden boards and mushroom culture media, turning waste into treasure.

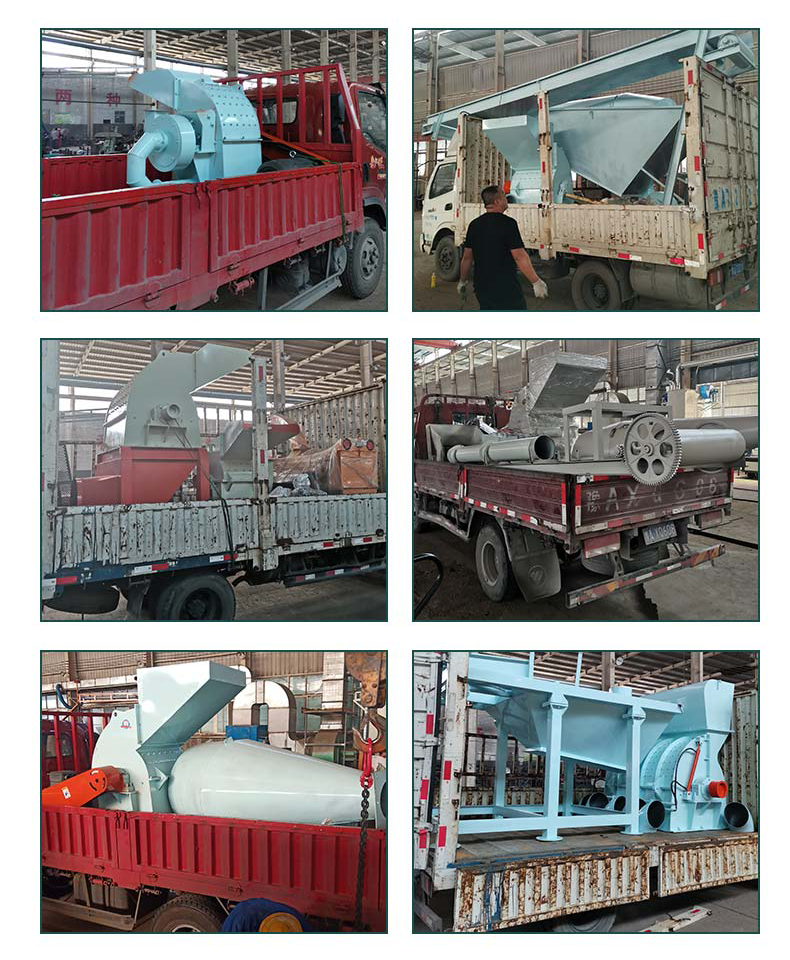

Delivery site
